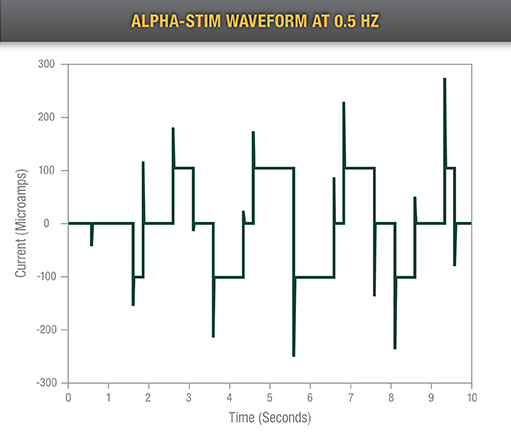

If Spooky could do the following waveform, which comes from the Alpha-Stim pain relief device?

Spooky2

August 15, 2016 09:42

Of course such a wave is possible if one makes a custom waveform as I did:
Alpha-Stim.csv, please check the attachment

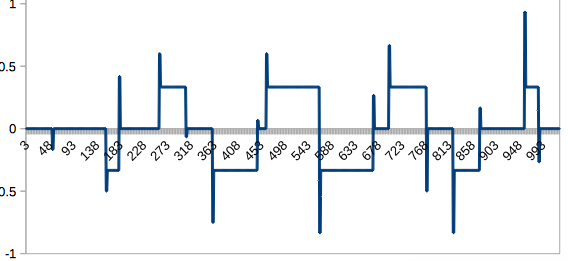

Here is what alpha-stim.csv looks like when charted in a spreadsheet:

2. To do this you need also a bidirectional constant current source that can be modulated.

The easiest way to do it (so far) is here:
http://www.spooky2.com/forums/viewtopic.php?f=10&t=5118&start=30#p46559

For more details, please check the link:
http://www.spooky2.com/forums/viewtopic.php?f=71&t=5814
