Square With Sine Summation Waveform

Here is a waveform consisting of Square Wave with a summation of one cycle and ten cycles of Sine Wave.

The waveform is an inspiration based on John Bedini's video presentation and his circuit diagram.
For further details please refer to the topic
http://www.spooky2.com/forums/viewtopic.php?f=71&t=6748#p59687

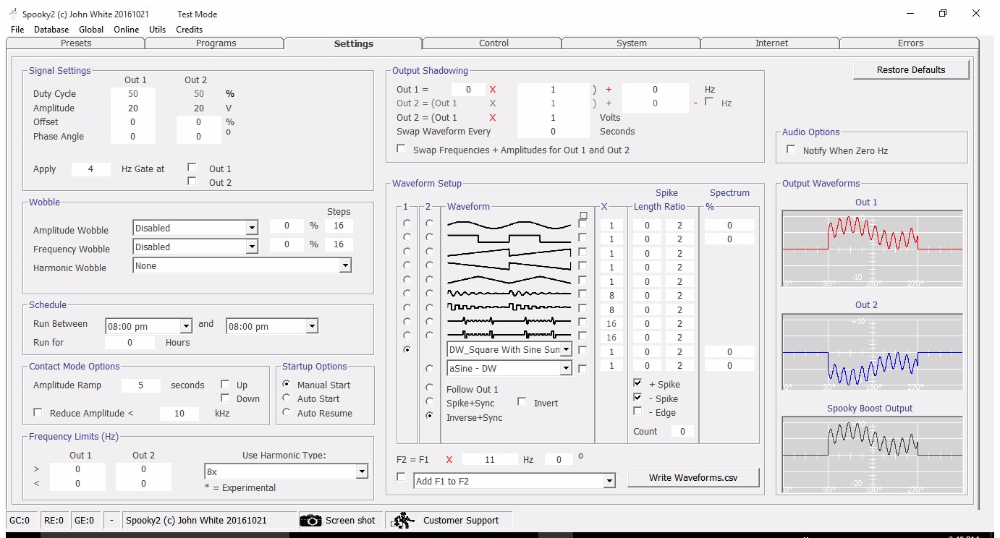

Square With Sine Summation Waveform

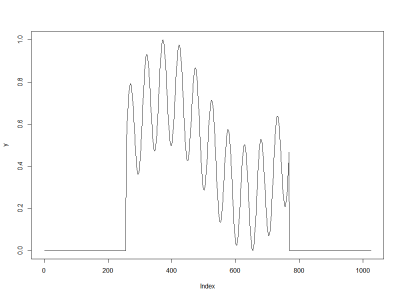

Square With Sine Summation Waveform

Copy the DW_Square With Sine Summation.csv file to the sub-directory of Spooky2 Program Directory,
i.e. ~/Spooky2/Waveforms.
DW_Square With Sine Summation.csv

Please provide feedbacks after experimenting with the waveform.

Use at your own risks.

For more details, please check the link: http://www.spooky2.com/forums/viewtopic.php?f=71&t=6757
