Is it normal that the oscilloscope tests out 22V?

When you set the generator with 20V, it is normal that oscilloscope test out 22V.
Since the waveform have kurtosis, the oscilloscope usually test out the maximum kurtosis.

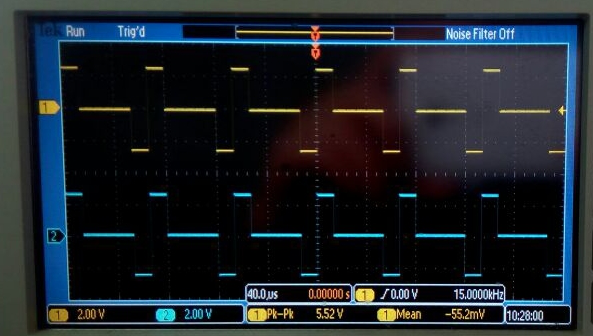

For example, we set generator with 5V, the oscilloscope test out 5.52V, the picture as below:
